With FTA, the DNA remains tightly bound while proteins and inhibitors are washed from the matrix.
 FTA Classic indicating card

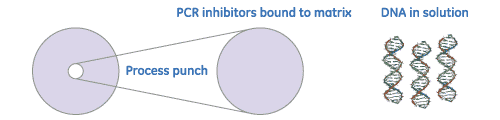

With FTA Elute, proteins remain tightly bound while DNA is eluted from the matrix.
 FTA Elute indicating card
They include a pink (FTA) or purple (FTA Elute) indicating dye that turns to white when a clear sample is applied.
FTA technology offers the following advantages over untreated papers and swabs:
In addition, FTA cards provide flexibility—one sample can be used with multiple downstream technologies. FTA fits into common forensic workflows, including DNA extraction using organic solvents or commercially available DNA extraction kits, DNA quantitation using real-time PCR, mitochondrial sequencing, and STR analysis.
 Product InformationFor more information or to place an order |

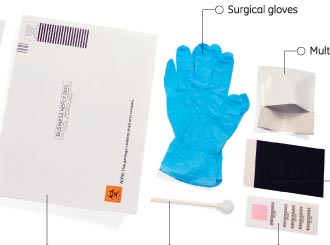

 Field-based sample collection often requires the use of multiple products, such as data collection forms, gloves, sterile wipes, and a collection product, as well as barcodes to help ensure chain of custody.
Custom kits enable you to handle all of these tasks with a single product that will fit into your agency’s workflow. GE Healthcare can customize kits that include any of our Whatman FTA products or other sample collection products and accessories.
We can provide custom FTA cards with the following options:
- Accommodation for areas to include subject’s information and/or fingerprints
- Agency-specific data forms; agency name, logo, etc.
- Inclusion of barcodes for tracking
- Customized instructions for sample collection and shipping
- Special inks for optical character recognition (OCR)
- Tools needed for successful collection and transport
- And much more by utilizing our Custom Service Group
Trust GE Healthcare, with its expertise, manufacturing capability, and quality systems, to manufacture your custom sample collection kits and cards.
Product InformationFor more information or to place an order
|
- Offender DNA databasing
- Forensic DNA casework -- matching known samples to unknown samples
- Paternity testing -- identifying family members
- Missing persons investigations
- Disaster Victim Identification (DVI)
- Military DNA “dog tag” – DNA identification files for military personnel
- Genetic studies/population studies
Globally, forensic scientists utilize Whatman FTA technology to collect, stabilize, transport, and archive their DNA samples. With custom and off-the-shelf products available for blood or buccal cell collection, FTA technology can also be used by law enforcement personnel to quickly and easily collect samples from arrestees and offenders. With the many different applications amenable for use with FTA come the many different sample types that can be applied to FTA.
Example of typical samples that can be stored and analyzed using FTA Cards.
| Liquid samples |
Solid Samples |
| Saliva |
Solid Tissue (i.e. muscle tissue, tumor cells, liver) |
| Buccal Cells |
Stool Sample |
| Whole Blood |
Bone Marrow |
| Blood Derivatives |
Hair Root |
| Sperm cells/ Semen |
Soil Samples |
| Urine |
|
| Amniotic Fluid |
|
| Purified DNA |
|
| Glycerol Stock |
|
The method of sample application is dependent on the sample type:
- Saliva and buccal samples – cells are transferred to “indicating” cards with gentle pressure.
- Cell suspensions and other liquid samples – such as blood can be pipetted onto the matrix. Typically between 5-125μL of sample is applied per designated area. Samples should be applied evenly over the defined sample area to avoid overloading the matrix in any one area.
- Solid samples – applying pressure; samples such as meat or tumors are cut to expose a fresh surface and placed directly on the FTA matrix. Pressure is applied to ensure good contact and transfer of cells between the exposed surface and the matrix. Cellular transfer can be checked by removing the tissue to visualize the matrix; if required the sample can be reapplied with increased pressure.
Product InformationFor more information or to place an order
|
For human identification questions related to products, services or for technical support,
an email can be sent to DNACollection@ge.com
Please include the following:
Name
Institution
Country
Contact information (email, phone number, etc.)
Lot numbers (for technical support)
Purchase order- local (for technical support)
Sales Order number – local (for technical support)
To place an order or get a quote click here to select the country where you wish to place an order.
|
Literature
FTA products
- Application notes
- Brochures and Data Sheets
- Posters
Other products
References
|
| February 2012 |
|
|
| American Academy of Forensic Science |
Atlanta, GA |
20-24 February 2012 |
| March 2012 |
|
|
| EuroForensics 2012 |
Istanbul, Turkey |
29-31 March 2012 |
| 1st International Forensic Technology Fair |
Warsaw, Poland |
28-30 March 2012 |
|
| Product |
Notes |
Sample areas/card |
Cards/pack |
Code number |
| Indicating cards |
For buccal and saliva samples |
|
|
|
| EasiCollect |
- Contains a 2x2 inch Indicating FTA card plus foam collection pad.
- Can be used with direct STR amplification.
|
1 |
50 |
WB120462 |
| Indicating FTA Micro Card |
- Recommended when only one sample is needed.
- Can be used with direct STR amplification.
|
11 |
25100 |
WB120311WB120211 |
| Indicating FTA Mini Card |
- Each sample can be processed independently.
- Can be used with direct STR amplification.
|
22 |
25100 |
WB120356
WB120056 |
| Indicating FTA Classic Card |
- Convenient for multiple applications of the same sample on one card.
- Each sample can be processed independently.
- Can be used with direct STR amplification.
|
44 |
25
100 |
WB120306
WB120206 |
| Indicating FTA Elute Micro Card |
- For water elution of DNA.
|
11 |
25
100 |
WB120412
WB120411 |
| Non-indicating cards |
For blood samples |
|
|
|
| FTA Micro Card |
- Recommended when only one sample is needed.
- Can be used with direct STR amplification.
|
11 |
25
100 |
WB120310
WB120210 |
| FTA Mini Card |
- Convenient for protocols that require different locations
for testing and archiving of samples.
- Each sample can be processed independently.
- Can be used with direct STR amplification.
|
2
2 |
25
100 |
WB120355
WB120055 |
| FTA Classic Card |
- Convenient for multiple applications of the same sample on one card.
- Each sample can be processed independently.
- Can be used with direct STR amplification.
|
4
4 |
25
100 |
WB120305
WB120205 |
| FTA Elute Micro Card |
- For water elution of DNA.
|
4
4 |
25
100 |
WB120401
WB120410 |
| |
| Product |
Notes |
Quantity/
pack |
Code number |
| Manual punching of FTA cards |
|
|
|
| Harris Micro-Punch |
- No sample carryover when recommended procedures are used.
- Tips provide up to 2000 punches..
- Cutting mat ensures clean sample cuts and extends
the life of cutting tip.
|
|
|
Harris Micro-Punch 1.2 mm,
with cutting mat |
- For use with FTA cards containing whole blood or buccal cells.
|
1 |
WB100005 |
| Replacement Tip 1.2 mm |
|
1 |
WB100006 |
| Harris Micro-Punch 1.2 mm, replacement plunger |
|
1 |
WB100025 |
| Replacement Cutting Mat |
|
1 |
WB100020 |
Harris Micro-Punch 2.0 mm,
with cutting mat |
- For use with FTA cards containing buccal cells.
|
1 |
WB100007 |
| Replacement Tip 2.0 mm |
|
1 |
WB100008 |
Harris Micro-Punch 2.0 mm,
replacement plunger |
|
1 |
WB100026 |
Harris Micro-Punch 3.0 mm,
with cutting mat |
|
1 |
WB100038 |
| Replacement Tip 3.0 mm |
|
1 |
WB100042 |
Harris Micro-Punch 3.0 mm,
replacement plunger |
- For use with FTA cards containing buccal cells.
|
1 |
WB100041 |
| Harris Uni-Core Punch |
- Disposable punch.
- No sample carryover when recommended procedures are used.
- Tips provide up to 500 punches.
|
|
|
| Harris Uni-Core Punch 1.2 mm |
- For use with FTA cards containing whole blood or buccal cells.
- Can use one or two 1.2 mm punches with buccal samples.
|
4 |
WB100028 |
| Harris Uni-Core Punch 2.0 mm |
- For use with FTA cards containing buccal cells.
|
4 |
WB100029 |
| Harris Uni-Core Punch 3.0 mm |
|
4 |
WB100039 |
| Harris Uni-Core Punch 6.0 mm |
- For use with FTA cards containing whole blood or buccal cells.
|
4 |
WB100040 |
|
| Product |
Notes |
Quantity/
pack |
Code number |
Semi-Automated punching
of FTA cards |
|
|
|
| Harris e-Core 1.2 mm |
- For use with FTA cards containing whole blood or buccal cells.
|
1 |
WB100052 |
| Harris e-Core 2.0 mm |
- For use with FTA cards containing buccal cells.
|
1 |
WB100048 |
| Harris e-Core 3.0 mm |
|
1 |
WB100049 |
| Replacement Tip 1.2 mm |
|
1 |
WB100006 |
| Replacement Tip 2.0 mm |
|
1 |
WB100008 |
| Replacement Tip 3.0 mm |
|
1 |
WB100008 |
| Buccal sample collection |
|
|
|
| Sterile OmniSwab |
- For collection of buccal cells and saliva.
- Features a brush-like swab head that easily ejects from the stem of
the swab for transfer of samples into tubes.
- For laboratories that collect samples that do not require archiving,
|
100 |
WB100035 |
| Sterile Foam-Tipped Applicators |
- Easy-to-use applicator.
- For collection and transfer of buccal cells and saliva to FTA cards.
- The nonabrasive foam head is the same size as the sample area on
Indicating FTA cards to facilitate sample application.
|
100 |
WB100032 |
| DNA purification from FTA cards |
|
|
|
| FTA Purification Reagents |
- For the purification of nucleic acids stored on FTA cards.
- Ensures excellent quality DNA for STR analysis.
- Removes heme, a PCR inhibitor, and other potential contaminants.
- 500 ml bottle.
|
1 |
WB120204 |
| Sample transport and storage |
For optimal sample integrity |
|
|
| Multi-Barrier Pouch, large |
- For transport or storage of FTA Classic Cards.
- Seven laminated layers protect the card from exposure to gas or liquid
contamination.
- Tamper-evident seal maintains sample security.
- Outer paper surface for labeling or writing.
- 9x15 cm.
|
100 |
WB100037 |
| Multi-Barrier Pouch, small |
- Same construction in a smaller size for storage of FTA Mini Cards or
FTA Micro Cards.
- Also suitable for FTA Elute Micro Cards.
- Tamper-evident seal maintains sample security.
- Outer paper surface for labeling or writing.
- 8x7 cm.
|
100 |
WB100037 |
| Desiccant Packets |
- Ensure that the FTA matrix remains dry during transport or storage.
- 1 g packets.
|
1000 |
WB100003 |
| Laboratory surface protection |
|
|
|
| Benchkote |
Benchkote Surface Protector, sheets, 460 x 570 mm
Benchkote Surface Protector, sheets, 460x570 mm
Benchkote Surface Protector, pad, 460 x 570 mm (available in US)
Benchkote Surface Protector, pad, 460 x 570 mm, 50 sheets per pad
(available in EU)
Benchkote Surface Protector, reel, 460 mm x 50 m
Benchkote Surface Protector, reel, 920 mm x 50 m
|
50
100
50
1
1
1
|
2300-916
2300-917
2300-594
2300-599
2300-731
2300-772
|
| BenchKote Plus |
Benchkote Plus Surface Protector, sheets, 500 x 600 mm
Benchkote Plus Surface Protector, reel, 600 mm x 50 m |
501 |
2301-61502301-6160 |
|
